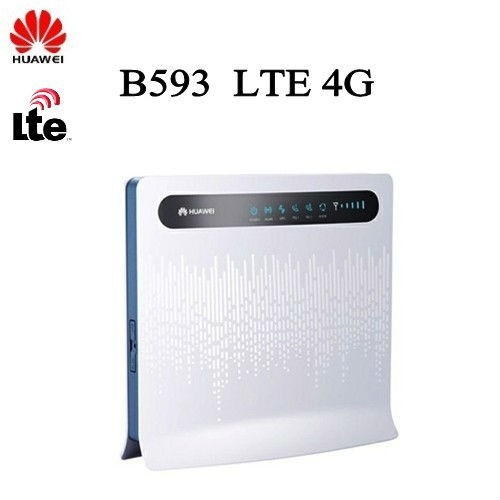

router 4g huawei LTE CPE B593 ROUTER HUAWEI 4G CU SLOT SIM Huawei B593 593 3G 4G LTE CPE Industrial WiFi Router - Decodat Orice Retea

Huawei B593 4G LTE Router is manufactured by Huawei modem and router, which also supports the 4G network .

LTE CPE B593 Router full named HUAWEI B593s-82, is the first LTE TDD wireless broadband routerof the world, supports LTE TDD/FDD 800/1800/2300/2600MHz, up to 100Mmbs download speed and access to up to 32 WIFI devices that become an ideal home entertainment and information exchange hub, spupports multi-devices simultaneous high speed access, perfect for SOHO's and small businesses with its connectivity options of the world, supports LTE TDD/FDD 800/1800/2300/2600MHz, up to 100Mmbs download speed and access to up to 32 WIFI devices that become an ideal home entertainment and information exchange hub, spupports multi-devices simultaneous high speed access, perfect for SOHO's and small businesses with its connectivity options.

Supported frequencies are:

*  2G: EDGE/GPRS/GSM 850/900/1800/1900 MHz

* 3G HSUPA / HSDPA / UMTS / DC-HSPA+ 900/2100 MHz

* 4G: LTE 800/900/1800/2100/2600 MHZ

Features:

HUAWEI B593 Compatibility:

Introduction:

1.    Insert the SIM card into the SIM card slot.

2.    Connect the power cord to the modem and the wall socket.

3.    Turn on your computer and any other devices modem LAN and USB ports.

4.    Turn on your modem POWER button.

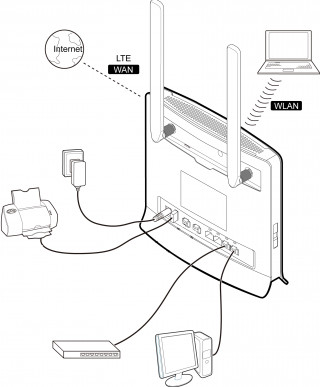

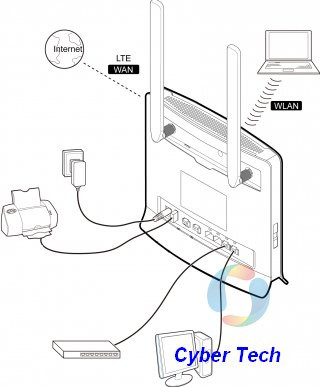

CONNECTING THE PC TO THE MODEM WLAN CONNECTION

1.    Turn on your modem POWER button.

2.    Make an indicator that the WLAN is enabled. To activate the WLAN feature on and off by holding the WLAN button for more than 3 seconds.

3.    Select your network from the list of wireless networks, the SSID name is the same as the name of your modem and press connect. Enter the network security key.

§  Note: The SSID and network security key can be found on the label on the back of the modem.

§  You can review and change the WLAN security settings for the network-management page under General Settings> WLAN Settings > Security.

4.    If the PIN code request is active, log network management page (192.1689.1.1 ) and enter the correct PIN code in the field provided.

Light Indicators:

Network Management Page

You can land the management page to check and change the Internet and security settings.

Network Management Page Opening

1.   Make sure that your flash drive and a computer or device the connection is established correctly.

2.   Start a web browser and enter the address   192.168.1.1

3.   If the PIN code request is active, asking the network management side of it. The default PIN is 0000.

Router modem Huawei B593 593 3G 4G LTE CPE Industrial WiFi Router - Decodat Orice Retea

Router 4G LTE Huawei B593 - Decodat, accepta orice cartela sim

4 porturi lan

2 usb

2 conectoare pentru telefon fix

2 conectoare pentru antena externa

4G LTE CPE HUAWEI B593 Router is the first LTE TDD wireless broadband router of the world, supports LTE TDD/FDD 800/1800/2300/2600MHz, up to 100Mmbs download speed and access to up to 32 WIFI devices that become an ideal home entertainment and information exchange hub.It supports multi-devices simultaneous high speed access, perfect for SOHO's and small businesses with its connectivity options of the world.

Frequencies:

* 2G: EDGE/GPRS/GSM 850/900/1800/1900 MHz

* 3G HSUPA / HSDPA / UMTS / DC-HSPA+ 900/2100 MHz

* 4G LTE TDD FDD 800/900/1800/2100/2600 MHz

Features:

PORTS:
  * 3 x LAN
  * 2 x USB

Transmission speed 4G (MAX)

   * Download 100 Mbit / s
   * upload 50 Mbit / s

TRANSMISSION SPEED 3G (MAX)
   * download 42.2 Mbit / s
   * upload 5.76 Mbit / s

WI-FI: Wi-Fi(802.11 b / g / n)

Addistional antenna location: two antenna ports

SIZE: 190 mm x 35 mm x 176 mm

WEIGHT: 500g

Operation systems it's compatible with:

* Windows 2000/ Windows XP/ Windows Vista/ Windows 7
* Mac OS 10.5/ Mac OS 10.6/ Mac OS 10.7
* Linux

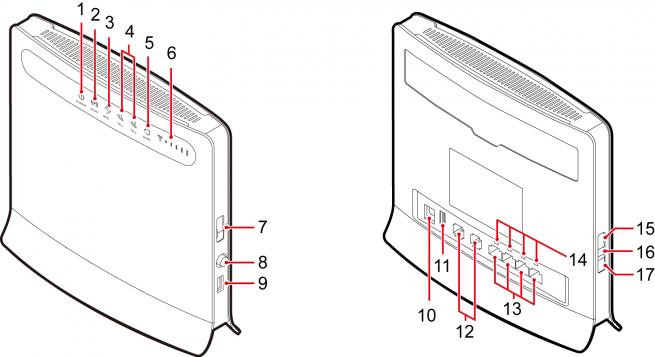

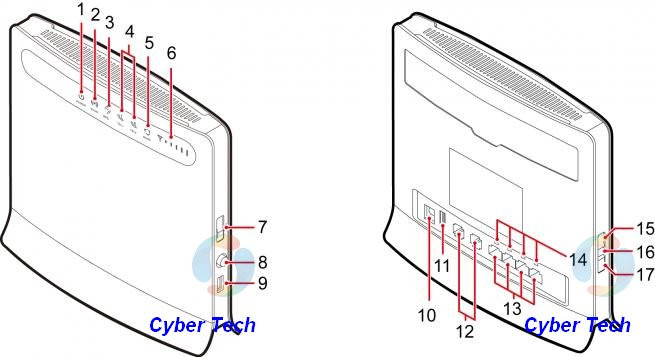

1. POWER Indicator                  2. WLAN LED                          3. WPS indicator                         4. TEL indicator                     5. MODE indicator
6. SIGNAL indicator                  7. SIM card slot                        8. POWER button                       9. USB Port                            10. Power supply position
11. USB-Port                             12. Telephone port                  13. LAN port                                14 LAN indicator lights         15. WPS button
16. RESET button                     17. WLAN mode
