Specificatii
PLACA VIDEO PCI EXPRESS 256MB 128 BITI ATI RADEON
X550 RX550GU2-D3H GECUBE

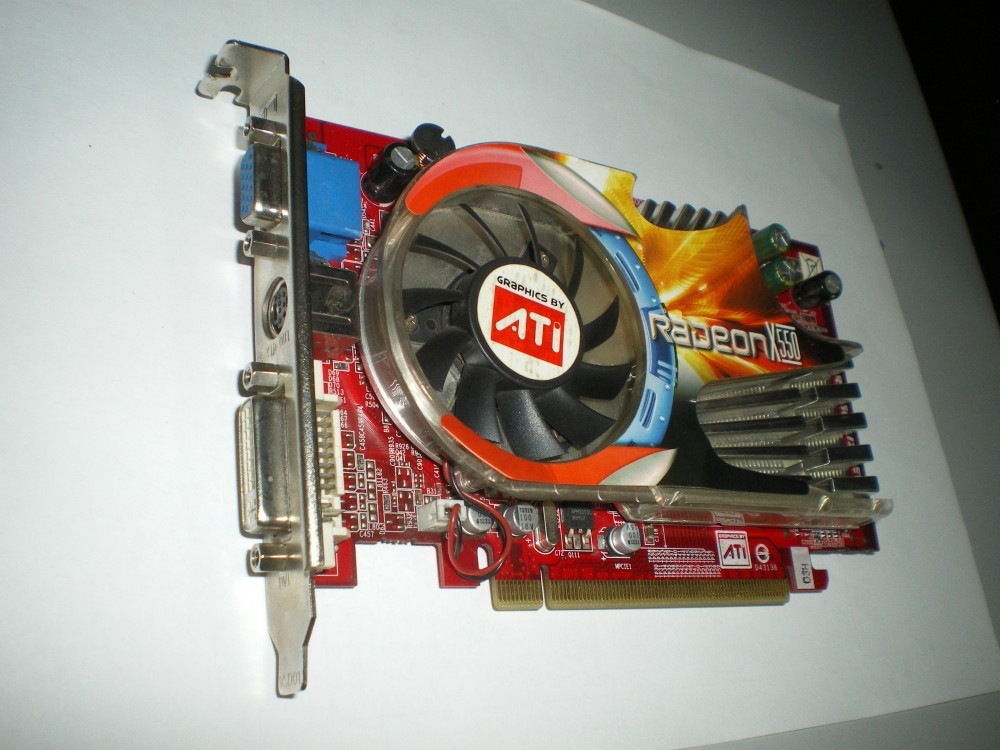

POZE REALE
PLACA ESTE PERFECT FUNCTIONALA
CALIFICATIVELE MA RECOMANDA!
GeCube GC-RX550GU2-D3 (Radeon X550)
Technical Specifications
| Graphics Engine |
- ATI RADEON X550 Visual Processing Unit (VPU)
- Stock VPU clock = 450MHz
- 4 parallel rendering pixel pipelines
- 2 programmable vertex shader pipelines
- 128-bit memory interface
- SMARTSHADER™ 2.0
- Programmable vertex and pixel shaders
- Pixel Shaders
- up to 160 instructions with 128-bit floating point
precision
- Realistic lighting of any kind of surface
- Varying properties of a material across a surface
- Accurate modelling of objects with microstructure
- Horizon mapping
- Vertex Shaders
- Supports up to 160 instructions and 16 textures per rendering
pass
- Procedural deformation
- Fur rendering
- Advanced keyframe interpolation
- Shadow volume extrusion
- Particle systems
- Many light sources
- Lens effects
- Advanced matrix palette skinning
- Multiple render target support
- Shadow volume rendering acceleration
- High precision 10-bit per channel frame buffer support
- Supports DirectX® 9.0 and the latest version of OpenGL
- 2x/4x/6x full scene anti-aliasing modes
- Sparse multi-sample algorithm with gamma correction,
programmable sample patterns, and centroid sampling
- Lossless Color Compression (up to 6: 1) at all resolutions,
including widescreen HDTV resolutions
- 2x/4x/8x/16x anisotropic filtering modes
- Up to 128-tap texture filtering
- (Adaptive algorithm with bi-linear (performance) and tri-linear
(quality) options)
- 3Dc™
- High quality 4:1 Normal Map Compression
- Works with any two-channel data format
- HYPER Z™ III
- 3-level Hierarchical Z-Buffer with early Z test
- Lossless Z-Buffer compression (up to 24:1)
- Fast Z-Buffer Clear
- VIDEOSHADER™
- Seamless integration of pixel shaders with video
- FULLSTREAM™ video de-blocking technology
- Noise removal filtering for captured video
- Dual integrated display controllers
- MPEG-2 decoding with motion compensation, iDCT and color space
conversion
- All-format DTV/HDTV decoding
- YPrPb component output
- Adaptive de-interlacing and frame rate conversion
|
| Graphics Memory |
- Default Memory clock = 375MHz (750MHz DDR)
|
| RAMDAC |
- Dual integrated 10-bit per channel 400MHz DACs
- Integrated 165MHz TMDS transmitter (DVI 1.0 compliant and HDCP
ready)
|
| I/O Faceplate Connectors |
- 1 x DVI-I connector
- 1 x mini-DIN connector
- 1 x analog VGA connector
|
| Drivers & Software |
- Driver support for Windows 98SE / Me / NT / 2000 / XP
|
| Other Information |
- PCI Express x 16 required
|
